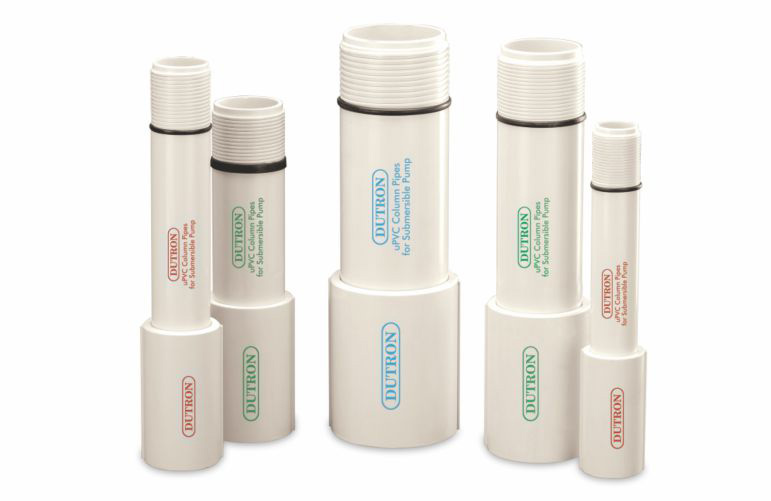

Dutron Submersible Column Pipes are best suitable for bringing out underground stream water from borewell with help of submersible pump. Dutron Column Pipes are lead-free and non-corrosive and 100% hygienic/safe for drinking water. These pipes are uniquely designed and manufactured from State-of Art CNC machines. Our column pipes are specially designed with square threads to give excellent grip to withstand high tensile head load.
Dutron Column pipes are available from 25mm to 100mm and various classes such as V4 12.5, V415, Medium, Standard, Heavy and Super heavy. Dutron Column Pipes are widely accepted in more than 20 countries.
Key Features
Smooth inner surface – lowest friction loss – high flow rate
Safe use in vertical, horizontal and inclined positions
Accurate square threads at the end – very good pulling (tensile) strength
Complete system with top, bottom adapters and pump guard
Rubber ring sealing for leak proof joints
Available Sizes
25 mm to 100 mm I.D.
Hydrostatic Pressure
Medium 10kg/cm² to 15kg/cm²
Standard 15kg/cm² to 20kg/cm²
Heavy 26kg/cm² to 30kg/cm²
Applications
With submersible pumps for water delivery under pressure from bore wells – Medium, Standard or Heavy types.
