ERW Pipes

Water Pipelines

  • Water Mains, Plumbing, Sewerage Systems, STP, WTP, Fire, HVAC, Industrial Water Lines, Plant Piping.
  • IS:1239, IS:3589, ASTM A 53, JIS G 3444, EN 10255, EN 10217-1, AS:1074, ASNZ:1163:2016

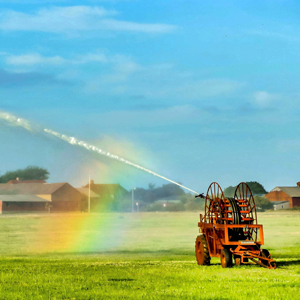

    • Agriculture & Irrigation

  • Deep Tube-Wells & Casing Pipes. IS:4270

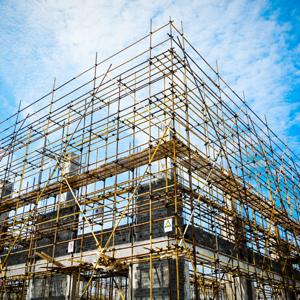

    • Construction Industries

  • Scaffolding & Structural Purposes.
  • IS:1161, IS:4923, EN 39, EN 10219- Part 1 & 2, AS NZ 1163:2016 ASTM A 500 Electrical Poles & Telecom Tower (IS:1161)

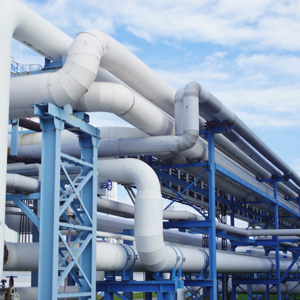

    • Oil Pipelines

  • Oil Refinery Piping, Crude Oil Piping Cross-Country Pipeline API 5L (PSL 1 & PSL 2), IS/ISO 3183

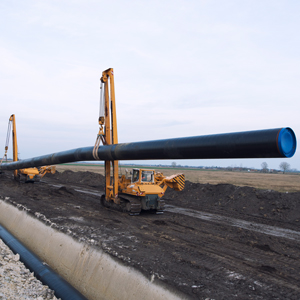

    • Gas Pipelines

  • Pipelines for Natural Gas, LPG, Domestic Gas line (home to home) IS 1239 and other Non-Toxic Gases.
  • API 5L (PSL 1 & PSL 2), IS/ISO 3183, JIS G 3444.

    • Specification & Application

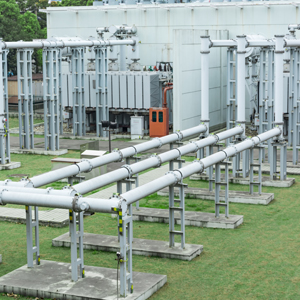

    Power Projects

  • Ash Handling System, LP Piping, API 5L IS:3589, IS:1239

    • Fire Fighting System

  • ASTM A 53, ASTM A 795
  • IS:3589, IS:1239

    • Sugar Industries

  • Steel Tubes for Mechanical & General Engineering Purposes.
  • (IS:3601, BS:1775, ASTM A513)

    • Electrical Installation

  • Pipes for electrical installation. IS 9537 (part-2)

    • Other Purposes

  • Supply of Exhaust Piping, Cold Storage Industry, LPG Cylinder Supporting Rings. (IS:1239)
  • Steel Tubes for Idlers & Belt Conveyors (IS:9295), Electrical Poles & Telecom Tower (IS:1161), Tubular Swaged Poles IS 2713:1980 HVAC (Heating Ventilation Air-Conditioning)
    • NB AND SERIES OUTSIDE DIAMETER WALL THICKNESS NOMINAL WEIGHT BLACK TUBES NOMINAL WEIGHT GALVANIZED TUBES SOCKETS
    PLAIN END SCREWED & SOCKETED PLAIN END SCREWED & SOCKETED MIN 00 MIN LENGTH
    MM Minimum MM Maximum MM MM SWG KG/M M/ TONNE KG/M M TONNE KG/M M/ TONNE KG/M M/ TONNE MM MM
    15 L 21.0 21.4 2.00 14 0.947 1056 0.956 1043 0.990 1010 1.002 998 27.0 37.0
    M 21.0 21.8 2.60 12 1.21 827 1.22 822 1.25 800 1.260 794
    H 21.0 21.8 3.20 10 1.44 695 1.45 691 1.48 676 1.489 671
    20 L 26.4 26.9 2.30 13 1.38 726 1.39 718 1.43 694 1.448 690 32.5 39.0
    M 26.5 27.3 2.60 12 1.56 641 1.57 636 1.61 624 1.628 614
    H 26.5 27.3 3.20 10 1.87 535 1.88 530 1.92 521 1.939 516
    25 L 33.2 33.8 2.60 12 1.98 505 2.00 498 2.05 488 2.077 482 39.5 46.0
    M 33.3 34.2 3.20 10 2.41 415 2.43 411 2.48 404 2.501 400
    H 33.3 34.2 4.00 8 2.93 341 2.95 338 3.00 334 3.022 331
    32 L 41.9 42.5 2.60 12 2.54 394 2.57 388 2.63 380 2.669 375 49.0 51.0
    M 42.0 42.9 3.20 10 3.10 323 3.13 319 3.19 313 3.227 310
    H 42.0 42.9 4.00 8 3.79 264 3.82 261 3.88 258 3.920 255
    40 L 47.8 48.4 2.90 11 3.23 310 3.27 305 3.33 300 3.383 296 56.0 51.0
    M 47.9 48.8 3.20 10 3.56 281 3.60 277 3.66 273 3.709 270
    H 47.9 48.8 4.00 8 4.37 229 4.41 226 4.47 224 4.518 221
    50 L 59.6 60.2 2.90 11 4.08 245 4.15 241 4.21 238 4.277 234 68.0 60.0
    M 59.7 60.8 3.60 9 5.03 199 5.10 196 5.16 194 5.234 191
    H 59.7 60.8 4.50 7 6.19 161 6.26 160 6.32 158 6.390 156
    65 L 75.2 76.0 3.20 10 5.71 175 5.83 172 5.88 170 5.992 167 84.0 69.0
    M 75.3 76.6 3.60 9 6.42 156 6.54 153 6.59 152 6.702 149
    H 75.3 76.6 4.50 7 7.93 126 8.05 124 8.09 124 8.206 122
    80 L 87.9 88.7 3.20 10 6.72 149 6.89 145 6.91 145 7.081 141 98.0 75.0
    M 88.0 89.5 4.00 8 8.36 120 8.53 117 8.55 117 8.725 115
    H 88.0 89.5 4.80 6 9.9 101 10.10 99 10.13 99 10.300 97
    100 L 113.0 113.9 3.60 9 9.75 103 10.00 100 10.00 100 0.248 98 124.0 87.0
    M 113.1 115.0 4.50 7 12.2 82 12.50 80 12.40 80 12.657 79
    H 113.1 115.0 5.40 5 14.5 69 14.80 68 14.71 68 14.966 67
    125 M 138.5 140.8 4.80 6 15.90 63 16.40 61 16.27 62 16.654 60 151.0 96.0
    H 138.5 140.8 5.40 5 17.9 56 18.40 55 18.18 55 18.568 54
    150 M 163.9 166.5 4.80 6 18.90 53 19.50 51 19.35 52 19.841 50 178.0 96.0
    H 163.9 166.5 5.40 5 21.3 47 21.90 46 21.64 46 22.133 45
