Sharp

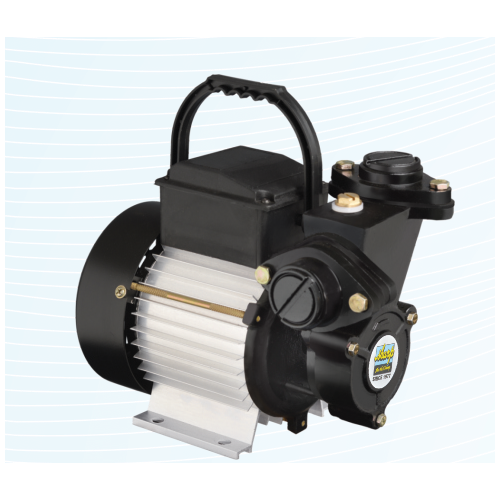

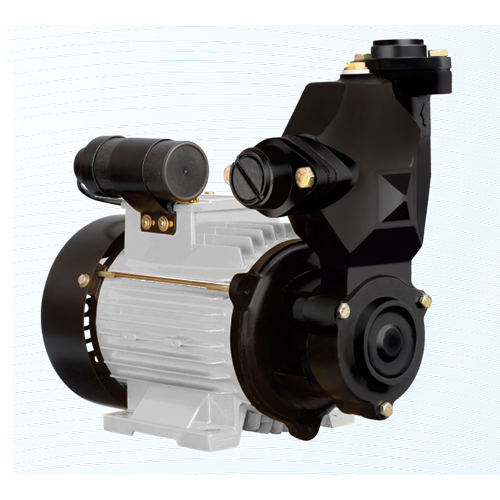

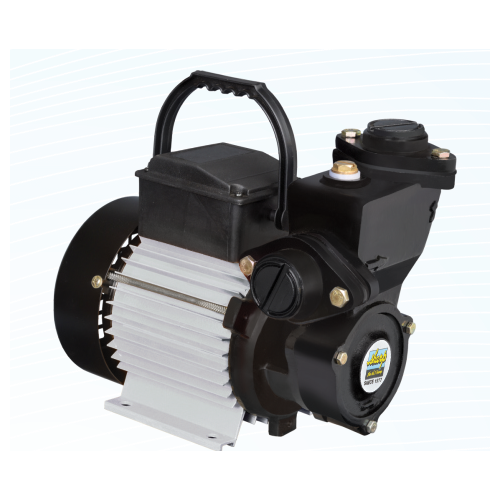

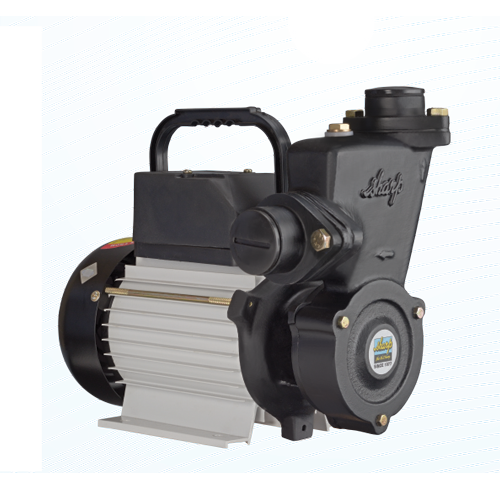

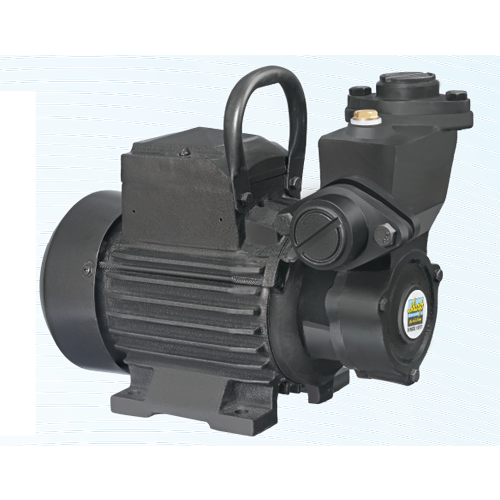

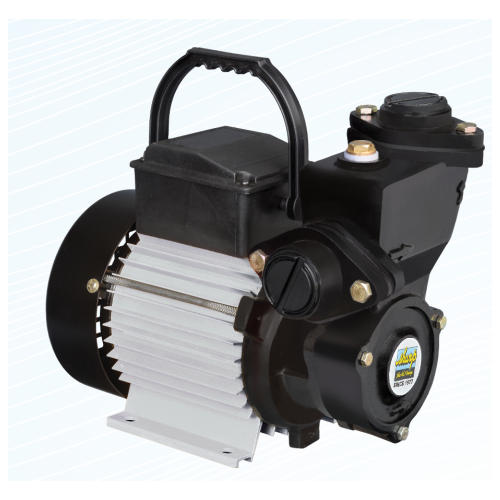

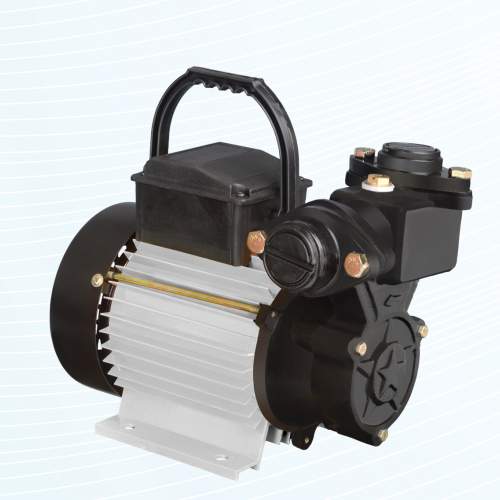

Self Priming Monobloc Pumps

Domestic use, Overhead tanks

Small irrigation

Hotels & Apartments

Curing at construction sites.

Booster application

High quality extruded aluminium and cast iron motor body

Double sealed precision ball bearings

Brass forged impeller

Mechanical seal with alumina seal face

TEFC Motor

Capacitor start and run type

Fitted with T.O.P (Thermal Overload Protector)

SI. No.	Model	kW/HP	Pipe Size (mm)	Total Head in Meter
				6	8	12	16	20	24	28	32	36	40	44	48	52	56	60
				Dicharge in LPH
1	GOLD 50	0.37/0.50	25 X 25	1728	1476	1728	1224	1008	792	468	0
2	GOLD 100	0.75/1.00	25 X 25	2628	2376	2124	1872	1620	1368	1116	792	468	0
3	STAR PLUS 40	0.37/0.50	25 X 25	2268	1908	1620	1368	1116	828	570	216	0
4	STAR PLUS 45	0.37/0.50	25 X 25	2664	2160	1836	1512	1152	756	324	0
5	MAXI FLO	0.80/1.10	25 X 25	2700	2268	1836	1832	792	0
6	STAR PLUS 100	0.75/1.00	25 X 25	3744	3168	2808	2484	2196	1872	1584	1260	972	576	180	0
7	STAR PLUS 150	1.10/1.50	25 X 25	3744	3672	3600	3456	3024	2376	2448	2160	1872	1548	1188	900	576	216	0

Self Priming Monobloc Pumps
